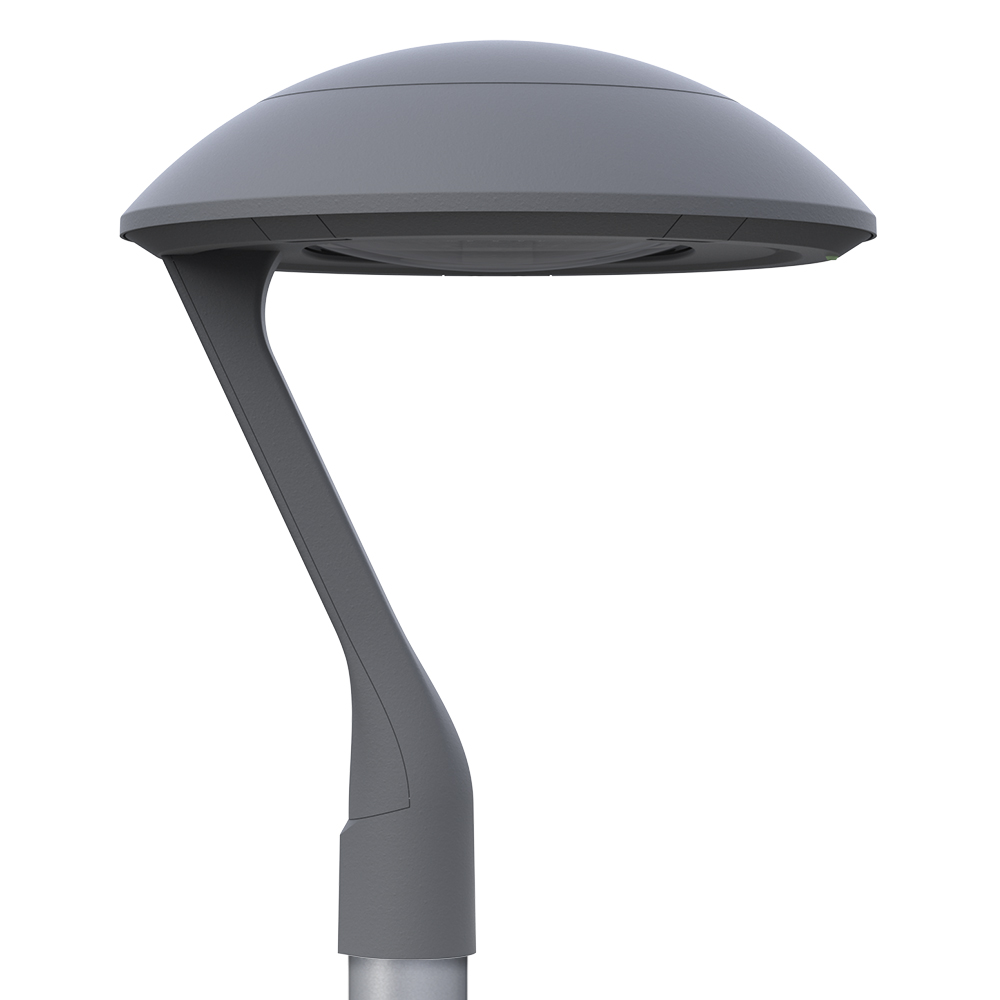

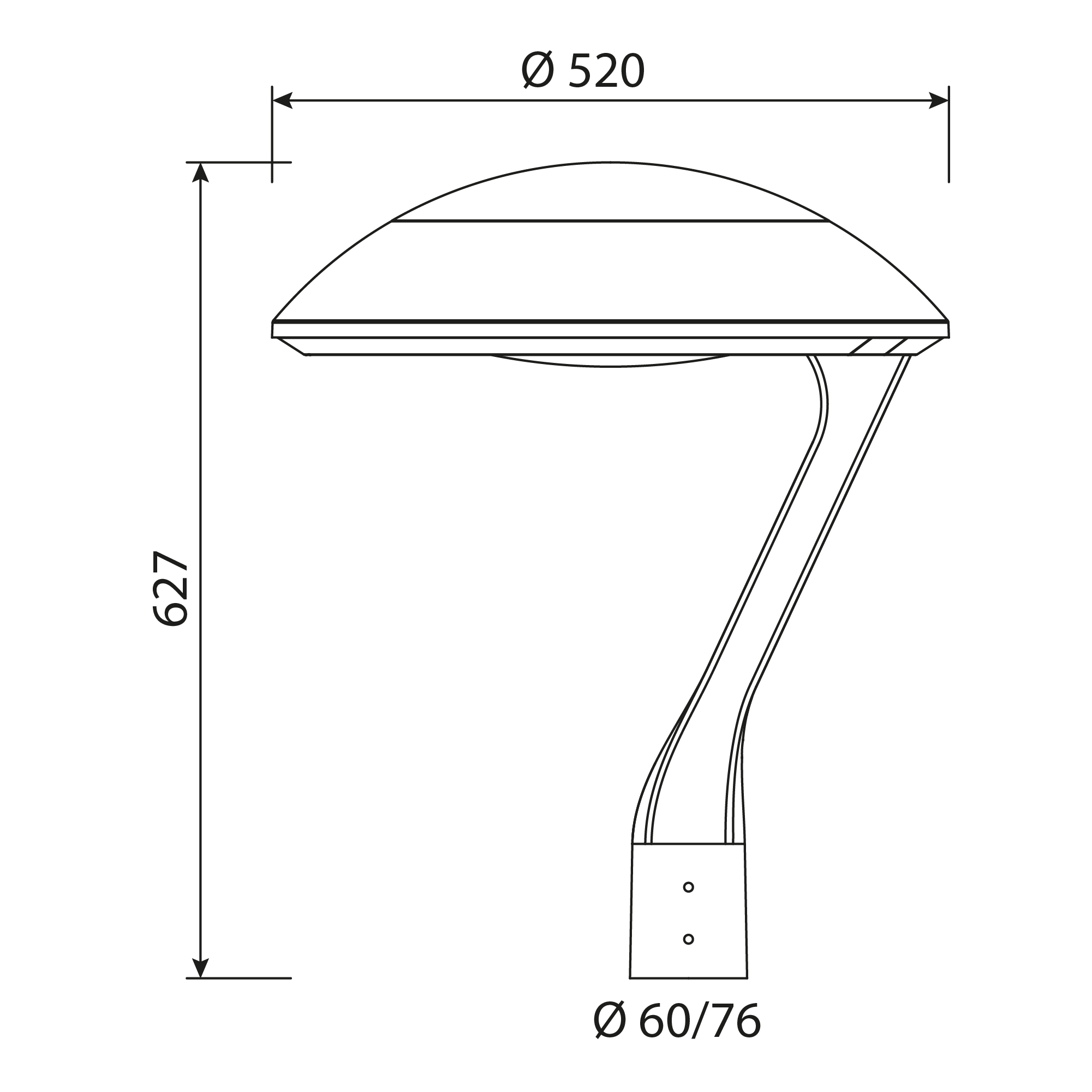

V3224
Pole-top luminaires
- Decorative luminaire family in 2 sizes for holistic lighting concepts
- Large version with five possible brackets for a uniform appearance across all application situations
- Luminaire family with decorative design language
- Compact design of the housing for easy installation
- Easy maintenance via separately removable electronic ballast carrier
System power
11 W – 53 W
Luminous flux
1.593 lm – 7.020 lm
Colour temperature
3000 K / 4000 K
Ingress protection
IP66
| Boards | W | mA | lm | K | CRI |
|---|---|---|---|---|---|
| 3x LEPL 2x6 | 36,0 W | 700 mA | 4.924 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 44,0 W | 850 mA | 5.948 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 11,0 W | 200 mA | 1.593 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 28,0 W | 550 mA | 4.037 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 26,0 W | 500 mA | 3.694 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 51,0 W | 1.000 mA | 6.784 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 23,0 W | 450 mA | 3.399 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 31,0 W | 600 mA | 4.333 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 49,0 W | 950 mA | 6.548 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 14,0 W | 250 mA | 1.970 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 34,0 W | 650 mA | 4.678 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 21,0 W | 400 mA | 3.044 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 16,0 W | 300 mA | 2.316 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 46,0 W | 900 mA | 6.189 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 41,0 W | 800 mA | 5.571 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 53,0 W | 1.050 mA | 7.020 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 39,0 W | 750 mA | 5.314 lm | 4000 K | Ra>70 |
| 3x LEPL 2x6 | 18,0 W | 350 mA | 2.659 lm | 4000 K | Ra>70 |
General Specifications
Enclosure:- Flat single-pane tempered safety glass, partially printed on the inside in grey
Maintenance:
- Housing to be opened tool-free
- Electronic ballast on removable carrier, tool-less to be removed
Optics:
- Lens optics made from PMMA in multi-layer-technology, differents specific characteristics for lighting compliant with standards
Electrical Specifications
LED technology:- Number of LEDs: depending on the power three or four high-quality LED modules with 2x6 LED each, compatible with Zhaga
- High- efficiency High-Power-LEDs
- Aluminium core printed circuit board for optimal thermal management
- Integrated, electronically controlled temperature monitoring
- Framed LED module to reduce scattering losses to a minimum
Overvoltage protection:
- Integrated; surge voltage resistance of 6kV (DM / L-N), 10kV (CM / L/N-earth)
Additional Specifications
Housing:- Powder-coated, die-cast aluminium
Light regulation:
- Constant Lumen Management (CLM)
- Autonomous performance reduction for operation in networks without a control line (LRA)
- Digital communication with DALI
- Optional: Radio-controlled Light Management System (LMS)
