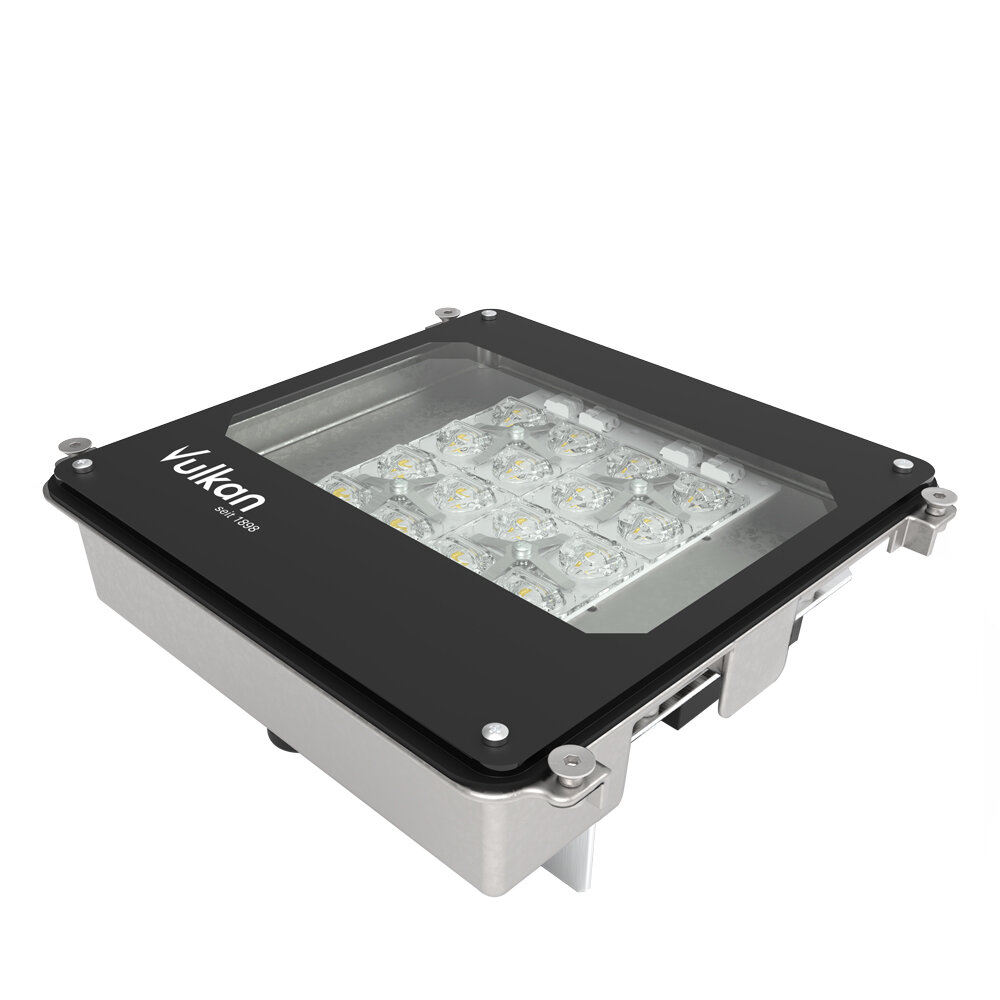

M3000
Replacement Kit
- Retrofitting kit for various luminaire types
- Discreet, slimline and minimalist design
- Flat, flush single-pane tempered safety glass
- Two versions, 2 LED boards, 3 LED boards
System power
11,1 W – 37 W
Luminous flux
1.485 lm – 5.153 lm
Colour temperature
1800 K / 2700 K / 3000 K / 4000 K
Ingress protection
IP20
| Boards | W | mA | lm | K | CRI |
|---|---|---|---|---|---|
| 3x LED | 29,7 W | 400 mA | 4186 lm | 4000K | Ra >70 |
| 2x LED | 13,5 W | 250 mA | 1854 lm | 4000K | Ra >70 |
| 3x LED | 33,4 W | 450 mA | 4698 lm | 4000K | Ra >70 |
| 2x LED | 11,1 W | 200 mA | 1485 lm | 4000K | Ra >70 |
| 2x LED | 16 W | 300 mA | 2160 lm | 4000K | Ra >70 |
| 2x LED | 23 W | 450 mA | 3132 lm | 4000K | Ra >70 |
| 2x LED | 25,7 W | 500 mA | 3436 lm | 4000K | Ra >70 |
| 3x LED | 26,2 W | 350 mA | 3696 lm | 4000K | Ra >70 |
| 3x LED | 19,3 W | 250 mA | 2781 lm | 4000K | Ra >70 |
| 2x LED | 20,7 W | 400 mA | 2791 lm | 4000K | Ra >70 |
| 2x LED | 18,3 W | 350 mA | 2464 lm | 4000K | Ra >70 |
| 3x LED | 22,6 W | 300 mA | 3240 lm | 4000K | Ra >70 |
| 3x LED | 16 W | 200 mA | 2227 lm | 4000K | Ra >70 |
| 3x LED | 37 W | 500 mA | 5153 lm | 4000K | Ra >70 |
General Specifications
Enclosure:- Enclosure made from flat single-pane tempered safety glass, inserted flush in the housing and screwed in place, weather-resistant
Optics:
- Choice of different optics, wide-beam precision optics for optimum illumination of the respective applications
- Lens optics made of PMMA in multi-layer technology
Installation:
- When installing in third-party luminaires, an intact cover and seal of the luminaire must be ensured
Electrical Specifications
LED technology:- Versions with 8 LED boards each, with high-power LEDs
- Aluminium core printed circuit board for optimal thermal management
- Thermal monitoring integrated in the operating device
Monitoring:
- Thermal monitoring of LED unit and operating device
Overvoltage protection:
- Integrated; surge voltage resistance of 6kV (L-N) (10kV for protection class II on request), 10kV (L/N earth)
Additional Specifications
Housing:- Die-cast aluminium
Installation:
- Cover plate is adapted to housing type, diameter variable
Light regulation: (optionally with dimmer function)
- Constant luminous flux control (CLM), power reduction for operation in networks without an autonomous control line (LRA); power reduction by switching off a control line (LRT), digital communication with DALI
